1.Administrator
1.1.Program Installation
1.1.1.Requisite Software Package
Microsoft Visual C++ 2008 SP1 Redistributable Package (x86) is required to be able to execute the RadioAssist 8 applications.
Microsoft Visual C++ 2008 SP1 Redistributable Package (x86) installs the requisite runtime components found in the Visual C++ libraries in order to execute the applications developed via Visual C++ SP1 on a computer which is not equipped with Visual C++ 2008 SP1.
1.1.2.Creating an ODBC data source
Before installing Administrator, it is necessary to create 2 ODBC data sources to be able to connect to the database servers.

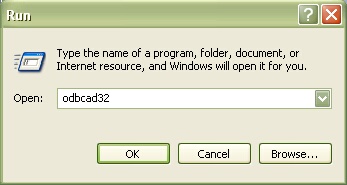

To do so, go to Task bar > Start Menu > Execute > Open: type odbcad32 and click on
to run the ODBC data sources administrator.

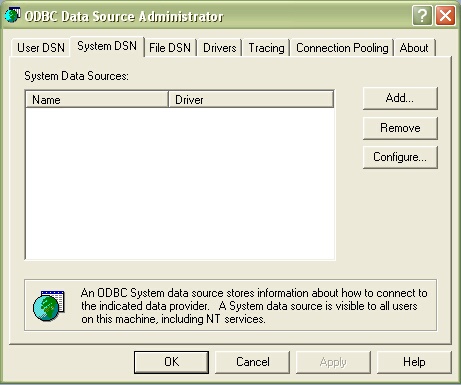

Select the "System DSN" tab, and then click on
.

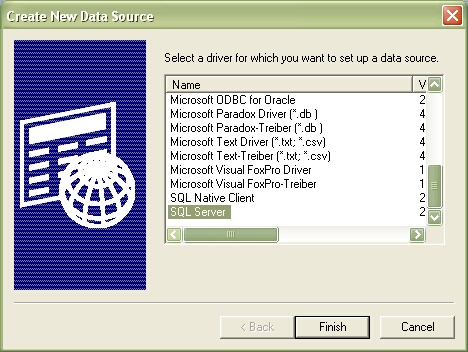

Select the “SQL Server” pilot, and then click on
.

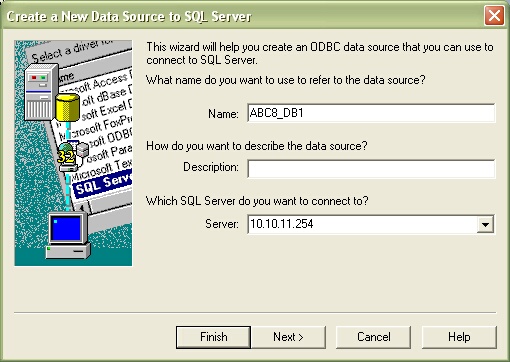

To create a new data source pointing to SQL Server, in the "Name" field, type the name of your ODBC data source. In the "Server" field, type the IP address of your database server.

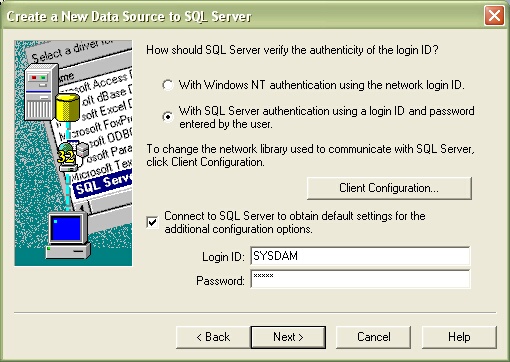

Tick the option “With SQL Server authentication using a login ID and password entered by the user” and then, in the "Login ID" field, type SYSADM. In the Password field, enter the password SYSADM.

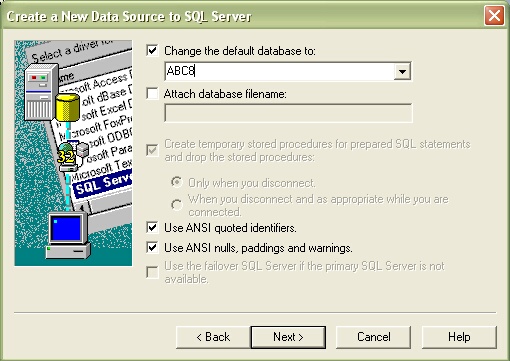

If the default database is not ABC8 yet, open the combo box and select ABC8.
Click on
.

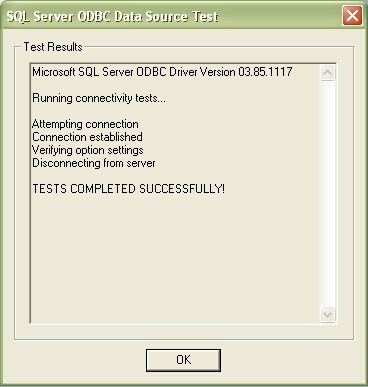

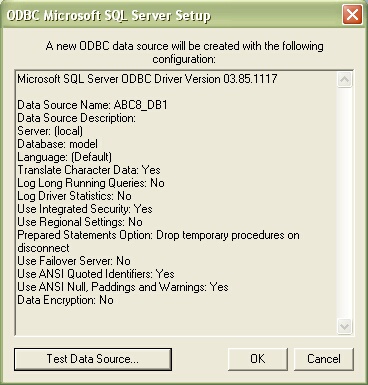

When your ODBC data source is created, click on “Test Data Source”.
Once the test has been successfully achieved, the following window appears. Then, click on OK.
Click on OK to end the ODBC data source creation.
To create a new ODBC data source, in order to be able to connect to the second database server containing the backup database, start the operation all over again without forgetting to use a different name to reference this data source.
1.1.3.Using the installer
To install "Administrator", start the installation program "Administrator.msi".

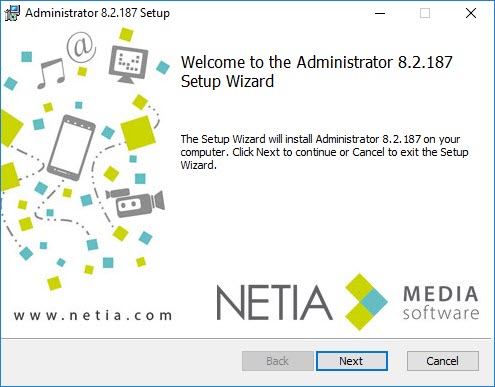

When this windows appears , click on
to continue installation.

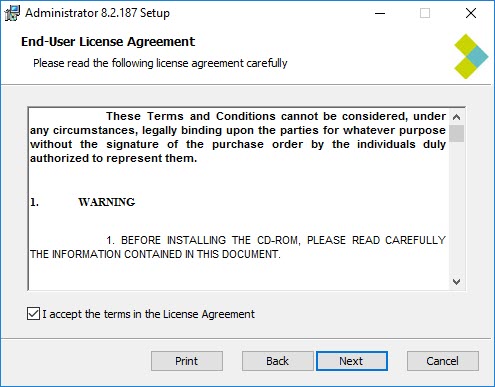

Click on
to continue.

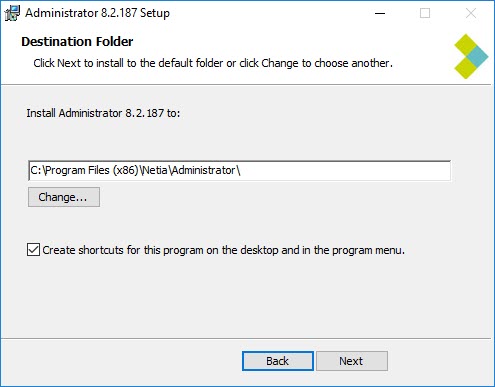

Tick the box to install shortcuts.
Click on
to continue.
The installation program installs files into the by default following folder :C\Program Files (86)\Netia\Administrator.
It also creates by default the shortcut "Netia" in the program group in the Start menu.
The installation program creates by default a shortcut "Administrator" on the desktop.in the program group in the Start menu.
Click on
to continue.

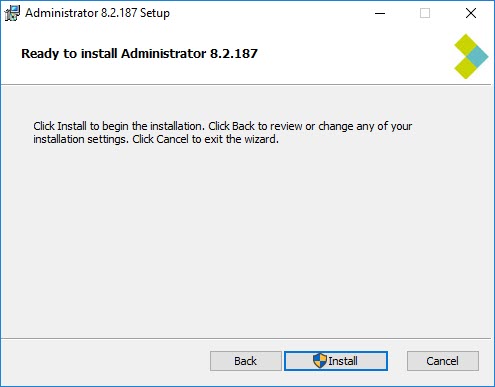

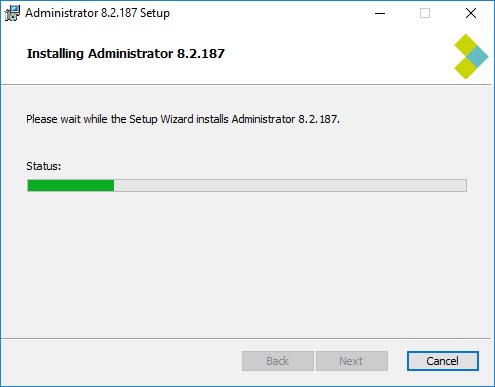

The installation program is now ready to install "Administrator"
Click on
to continue.

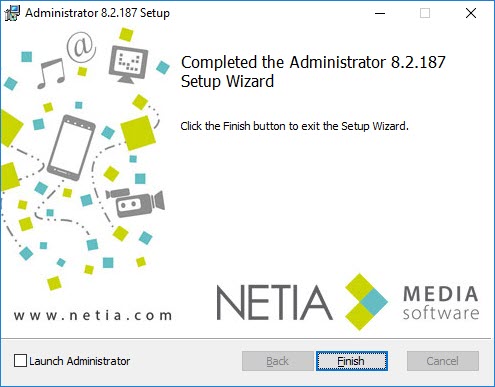

When the installation is done, the installation program offers to start "Administrator"
Click on
to end the installation.
1.2.User Interface

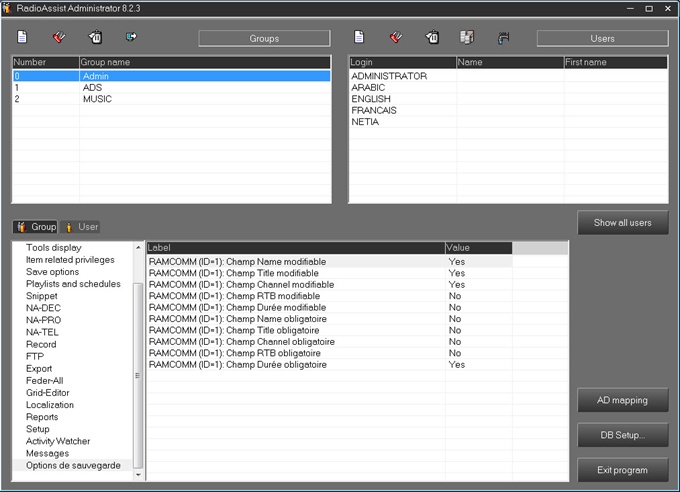

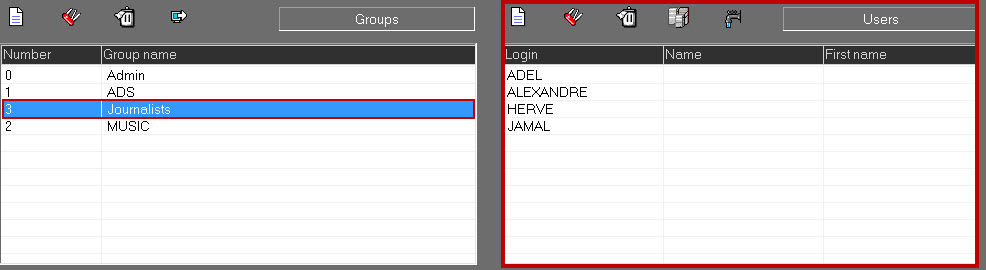

The program’s main window is divided up into 3 sections:
The list of groups called “Groups”
The list of users called “Users”
The list of rights if the “Group tab” has been selected, or the description corresponding to the user if the “User” tab is selected.
Four buttons are displayed on the program interface:
Show all users : this button allows you to display the list of all users.
Db Setup : this button allows you to configure the access to the databases.
AD Mapping : this button allows you to configure the access to an Active Directory or a LDAP directory.
Exit Program : this button allows you to quit the program.
1.2.1.Groups Administration

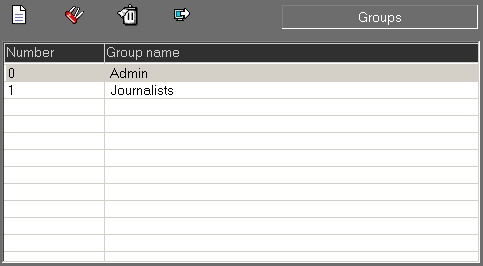

This section allows you to administrate the groups and to display the existing user groups. The groups are listed by alphabetical order or chronologically (to choose among these two filters, click on the black arrow appearing in the columns headings.
4 functions are available: create, modify, delete and export.
1.2.2.Users Administration
This part allows you to manage the user accounts and display the list of users belonging to an existing group. Users can be sorted alphabetically ou chronogically (to choose, click on the column header).
4 options are available : Create, modify, delete and import. .
1.2.3.AD Service
1.2.4.Import an Active Directory Object or LDAP

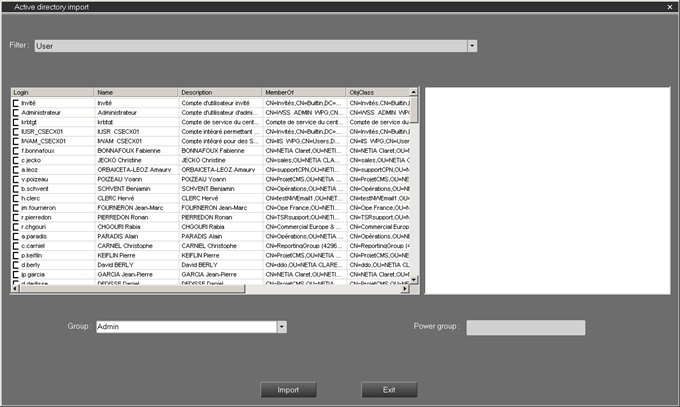

To import an object belonging to an Active Directory or a LDAP (Lightweight Directory Access Protocol), click on the “Import” button in the “Users” section. The objects will be visible only if the administrator software has been configured to access the directory (see chapter “III – 2 – Setup Administrator”).
The objects are filtered by categories: users, groups, workstations, LDAP directory.
Thick the box corresponding to the user you wish to import from the list on the left, once the user has been selected, the list of all its attributes appears in the list, on the right. Select the group in which the user will be imported and enter, if necessary, the Power Group’s ID. Then, click on the “Import” button.
1.2.5.Administrator Setup
1.2.6.Annex: list of rights for RA users
ADMINISTRATOR RIGHTS LIST | ADMINISTRATOR RIGHTS LIST | |
RADIO ASSIST | RADIO ASSIST | |
GLOBAL | ||
NAMX | SUPERVISOR | Have administrator privileges |
NAMX | CANQUIT | Quit the software |
NAMX | UNIQUE_LOGIN | Unique Login |
NAMX_DB | LOGGED_GPI_NUMBER | GPI Number set on user login |
BROWSER DISPLAY | ||
NAMX_DB | ONLY_VIEW_USER_ITEMS | Only see items created by current user |
NAMX_DB | ONLY_SOUND_FOR_GROUP | Only see items created by a group member |
NAMX_DB | CAN_BROWSE_REMOTE_DB | Can browse remote databases |
NAMX_DB | CAN_TRANSFER_ITEM_TO_THIS_DB | Can transfer item to current db |
NAMX_DB | DISPLAY_ALL | Display tab All in the database |
NAMX_DB | DISPLAY_NEWS | Display tab News in the database |
NAMX_DB | DISPLAY_MUSIC | Display tab Music in the database |
NAMX_DB | DISPLAY_JINGLE | Display tab Jingles in the database |
NAMX_DB | DISPLAY_ADVERT | Display tab Advert in the database |
NAMX_DB | DISPLAY_TEXT | Display tab Text in the database |
NAMX_DB | DISPLAY_AUTOPROG | Display tab Autoprog in the database |
NAMX_DB | DISPLAY_CART | Display tab CartStack in the database |
NAMX_DB | DISPLAY_JINGLEPACK | Display tab JinglePack in the database |
NAMX_DB | DISPLAY_FED8_TEMPLATE | Display tab Models in the database |
NAMX_DB | DISPLAY_FED8_PLAYLIST | Display tab Running orders in the database |
NAMX_DB | DISPLAY_FED8_STACK | Display tab Statck in the database |
NAMX_DB | CONFIRM_MASS_TAGGING_MODIFICATION | Confirm Mass tagging modifications |
$TAB_ID = Tab ID | DISPLAY | See the tab XXX in the Database |
TOOLS DISPLAY | ||
NAMX_RECORD | DISPLAY | Display tab Record |
NAMX_EASY | DISPLAY | Display tab Easy-editing |
NAMX_SNIPPET | DISPLAY | Display tab Snippet |
NAMX_XTRACK | DISPLAY | Display tab MultiTrack XT |
NAMX_STRACK | DISPLAY | Display tab Single track |
NAMX_MTTRACK | DISPLAY | Display tab Multi track |
NAMX_STRETCH | DISPLAY | Display tab Stretch |
NAMX_PROD | DISPLAY | Display tab Production |
NAMX_CART | DISPLAY | Display tab CartStack |
NAMX_EXPORT | DISPLAY | Display tab Export |
NAMX_IMPORT2 | DISPLAY | Display tab Import |
NAMX_NATEL | DISPLAY | Display tab Phone-In (Correspondance gestion) |
NAMX_NAPRO | DISPLAY | Display tab Feed-Plan (Auto record programmation) |
NAMX_NADEC | DISPLAY | Display tab Feed-In (Automatic Recorder) |
NAMX_4REC | DISPLAY | Display tab Quadro (4Rec) |
NAMX_MULTICD | DISPLAY | Display tab MultiCD |
NAMX_NDAWEB | DISPLAY | Display tab Web |
NAMX_JINGLEPACK | DISPLAY | Display tab JinglePacks |
NAMX_GRIDEDITOR | DISPLAY | Display tab GridEditor |
NAMX_FEDERALL | DISPLAY | Display tab FederAll |
NAMX_SKELETON | DISPLAY | Display tab Playlist Template |
NAMX_SCHEDULER | DISPLAY | Display tab Playlist-Prep |
NAMX_SCRIPT | DISPLAY | Display tab Script |
NAMX_MULTIFEEDS | DISPLAY | Display tab Multifeeds |
NAMX_EFFECTS | DISPLAY | Display tab Effects |
NAMX_AIRCART | DISPLAY | Display tab CartPlayer |
NAMX_USHARE | DISPLAY | Display tab UShare |
NAMX_REPORTS | DISPLAY | Display tab Reports |
NAMX_MONITORING | DISPLAY | Display tab Monitoring |
NAMX_MULTISNIPPET | DISPLAY | Display tab Snppet+ |
NAMX_AIRRUN | DISPLAY | Display tab AirRun |
NAMX_LOCADMIN | DISPLAY | Display tab LocAdmin |
NAMX_LOCSCHEDULE | DISPLAY | Display tab LocSchedule |
NAMX_ACTIVITYWATCHER | DISPLAY | Display tab Activity Watcher |
NAMX_MESSAGES | DISPLAY | Display tab Messages |
NAMX_CALENDAR | DISPLAY | Display tab Calendar |
ITEM RELATED PRIVILEGES | ||
NAMX_DB | CAN_CREATE_EMPTY_ITEM | Create empty items |
NAMX_DB | CAN_DELETE_ITEM | Can delete items |
NAMX_DB | GROUP_CAN_DELETE_ITEM | Can delete items created by a group member |
NAMX_DB | GROUP_CAN_CHANGE_ITEM | Can modify items created by a group member |
NAMX_DB | CAN_DELETE_ALL_ITEMS | Can delete all items |
NAMX_DB | CAN_CHANGE_ALL_ITEMS | Can modify all items |
NAMX_DB | CAN_CHANGE_RTB_ITEMS | Can modify RTB items |
NAMX_DB | CAN_CHANGE_BROADCASTABLE_ITEMS | Can modify Broadcastable items |
NAMX_DB | KEEP_DELETED_FILES | Keep files on delete (Undelete possible) |
NAMX_DB | CAN_UNDELETE | Can undelete items |
NAMX_DB | CAN_PURGE_DELETED_ITEMS | Purge deleted items manually |
NAMX_DB | CAN_RESTORE_ITEMS | Can Restore archived items |
NAMX_DB | CAN_CHANGE_RTB | Give the Ready-To-Broadcast state |
NAMX_DB | CAN_CHANGE_BROADCASTABLE | Give the Broadcastable state |
NAMX_DB | CAN_CHANGE_ARCHIVABLE | Give the Archivable state |
NAMX_DB | CAN_CHANGE_RTA | Give the Ready-To-Archive state |
NAMX_DB | CAN_CHANGE_LOCK | Give the Locked state |
NAMX_DB | CAN_CHANGE_PROTECTED | Give the private state |
NAMX_DB | CAN_CHANGE_RTW | Give the Web state |
NAMX_DB | CAN_DESELECT_RTB | Remove the Ready-To-Broadcast state |
NAMX_DB | CAN_DESELECT_RTB_ON_PLANIFIED_ITEM | Remove the Ready-To-Broadcast state on scheduled items |
NAMX_DB | CAN_DESELECT_BROADCASTABLE | Remove the Broadcastable state |
NAMX_DB | CAN_DESELECT_BROADCASTABLE_ON_PLANIFIED_ITEM | Remove the Broadcastable state on scheduled items |
NAMX_DB | CAN_DESELECT_RTA | Remove the Ready-To-Archive state |
NAMX_DB | CAN_DESELECT_ARCHIVABLE | Remove the Archivable state |
NAMX_DB | CAN_DESELECT_RTW | Remove the Web state |
NAMX_DB | CAN_COPY_LOCKED_ITEM | Can copy locked items |
NAMX_DB | CANMODIFY_ALLFLAGS_ONALLITEMS | Can modify all flags on all items |
NAMX_DB | CAN_MODIFY_DATE_KILL | Can modify the date kill on an item |
NAMX_DB | CAN_MODIFY_START_BROADCAST | Can modify the start broadcast date on an item |
NAMX_DB | CAN_MODIFY_END_BROADCAST | Can modify the end broadcast date on an item |
NAMX_DB | CAN_USE_MASTER_AS | Can masterize on a empty item |
SAVE OPTIONS | ||
NAMX_DB | RECORDPATH | Record Path for Group |
NAMX_DB | MAX_MB_RECORD_PATH | Maximum record Path size (MB) |
NAMX_DB | PERSONAL_PATH | Personal Record Path |
NAMX_DB | MAX_MB_PERSONAL_PATH | Maximum Personal Path Size (MB) |
NAMX_SAVE | NORMALIZE_DEFAULT_STATE | Normalization Default State |
NAMX_SAVE | CAN_SEE_NORMALIZE_BUTTON | See button Normalization |
NAMX_DB | KEEP_CREATE_TIME_ON_MASTER | Keep creation date on masterized items |
NAMX_SAVE | VERIFY_SAVE_RIGHT_ON_REMOTE_TRANSFERT | Check saving rights on remote transfert |
NAMX_SAVE | DISPLAY_NEWS | See tab News |
NAMX_SAVE | DISPLAY_MUSIC | See tab Music |
NAMX_SAVE | DISPLAY_JINGLE | See tab Jingles |
NAMX_SAVE | DISPLAY_ADVERT | See tab Adverts |
NAMX_SAVE | DISPLAY_AUTOPROG | See tab AutoProg |
NAMX_SAVE | DISPLAY_CART | See tab CartStack |
NAMX_SAVE | DISPLAY_TEXT | See tab Text |
NAMX_SAVE | DISPLAY_JINGLEPACK | See tab JinglePacks |
NAMX_SAVE | NEWS_CORRES_UPDATABLE | News : Cell Correspondant updatable |
NAMX_SAVE | NEWS_CITY_UPDATABLE | News : Cell City updatable |
NAMX_SAVE | NEWS_LANGUAGE_UPDATABLE | News : Cell Language updatable |
NAMX_SAVE | NEWS_TYPE_UPDATABLE | News : Cell Type updatable |
NAMX_SAVE | NEWS_CORRES_REQUIRED | News : Correspondant cell edition required |
NAMX_SAVE | NEWS_CITY_REQUIRED | News : City cell edition required |
NAMX_SAVE | NEWS_LANGUAGE_REQUIRED | News : Language cell edition required |
NAMX_SAVE | NEWS_TYPE_REQUIRED | News : Type cell edition required |
NAMX_SAVE | NEWS_TITLED_REQUIRED | News : Title cell edition required |
NAMX_SAVE | MUSIC_LANGUAGE_UPDATABLE | Music : Cell Language updatable |
NAMX_SAVE | MUSIC_TYPE_UPDATABLE | Music : Cell Type updatable |
NAMX_SAVE | MUSIC_SUBTYPE_UPDATABLE | Music : Cell Subtype updatable |
NAMX_SAVE | MUSIC_TEXTURE_UPDATABLE | Music : Cell Texture updatable |
NAMX_SAVE | MUSIC_TITLE_REQUIRED | Music : Title cell edition required |
NAMX_SAVE | MUSIC_AUTHOR_REQUIRED | Music : Author cell edition required |
NAMX_SAVE | MUSIC_LANGUAGE_REQUIRED | Music : Language cell edition required |
NAMX_SAVE | MUSIC_TYPE_REQUIRED | Music : Type cell edition required |
NAMX_SAVE | MUSIC_SUBTYPE_REQUIRED | Music : Subtype cell edition required |
NAMX_SAVE | MUSIC_NUMBER_REQUIRED | Music : Number cell edition required |
NAMX_SAVE | MUSIC_TEXTURE_REQUIRED | Music : Texture cell edition required |
NAMX_SAVE | JINGLE_TYPE_UPDATABLE | Jingles : Cell Type updatable |
NAMX_SAVE | JINGLE_NAME_REQUIRED | Jingles : Name cell edition required |
NAMX_SAVE | JINGLE_NUMBER_REQUIRED | Jingles : Number cell edition required |
NAMX_SAVE | JINGLE_TYPE_REQUIRED | Jingles : Type cell edition required |
NAMX_SAVE | JINGLE_LANGUAGE_REQUIRED | Jingles : Language cell edition required |
NAMX_SAVE | AUTOPROG_PROGRAM_UPDATABLE | AutoProg : Cell Program updatable |
NAMX_SAVE | AUTOPROG_CHANNEL_UPDATABLE | AutoProg : Cell channel updatable |
NAMX_SAVE | CART_TYPE_UPDATABLE | CartStacks : Cell Type updatable |
NAMX_SAVE | CART_TITLE_REQUIRED | CartStacks : Title cell edition required |
NAMX_SAVE | CART_TYPE_REQUIRED | CartStacks : Type cell edition required |
NAMX_SAVE | ADVERT_COMPANY_UPDATABLE | Adverts : Cell Company updatable |
NAMX_SAVE | ADVERT_CAMPAIGN_UPDATABLE | Adverts : Cell Campagn updatable |
NAMX_SAVE | ADVERT_TITLE_REQUIRED | Adverts : Title cell edition required |
NAMX_SAVE | ADVERT_COMPANY_REQUIRED | Adverts : Company cell edition required |
NAMX_SAVE | ADVERT_CAMPAIGN_REQUIRED | Adverts : Campagn cell edition required |
NAMX_SAVE | ADVERT_NUMBER_REQUIRED | Adverts : Number cell edition required |
NAMX_SAVE | JINGLEPACK_TITLE_REQUIRED | JinglePacks : Title cell edition required |
NAMX_SAVE | DISPLAY_$TAB_TYPE_$TAB_SUBTYPE | See the Tab XXX. Can save |
PLAYLIST AND SCHEDULES | ||
NAMX_DB | CAN_MODIFY_SCHEDUL_RTB | Modify the RTB flag of Schedules |
NAMX_DB | CAN_MODIFY_SCHEDUL_BROADCASTABLE | Can modify RTB schedules |
NAMX_DB | CAN_CHANGE_MUSICALL | Give the Planned Flag (MusicAll) |
NAMX_DB | CAN_DELETE_MODEL | Delete Feder-All models |
NAMX_DB | CAN_DELETE_SCHEDUL | Delete Feder-All Schedules |
NAMX_DB | SEE_ONLY_RTB_PLAYLIST | Only see RTB stacks, playlists and templates |
NAMX_SCHEDULER | CAN_EDIT_CURRENT | Edit current playlist (PlaylistPrep) |
NAMX_SKELETON | CAN_EDIT | Edit todays Template |
NAMX_PLANIF | CAN_PLANIF | Display planification tools |
NAMX_DB | CAN_EDIT_CHANNEL | Channels Vizualisation |
SNIPPET | ||
NAMX_SNIPPET | WITH_FADE | Have level curve (Fade) |
NA-DEC (FEEDIN) | ||
NA-DEC | CAN_STOP_NADEC | Stop NA-DEC |
NA-DEC | CAN_MODIFY_CHANNEL | Modify channels |
NA-PRO (FEED-PLAN) | ||
NA-PRO | CAN_DEL_AND_MODIFY_ALL_PROG | Delete and modify every programmation |
NA-PRO | CAN_ADD_PROG | Add programmations |
NA-TEL (PHONE-IN) | ||
NAMX_NA-TEL | CAN_MODIFY_SELECTION | Modify selections (PhoneIn) |
RECORD | ||
NAMX_RECORD | USE_TAKE | Use take |
NAMX_RECORD | SOUND_PROFILE | File Format Profil |
NAMX_RECORD | CAN_ADD_STREAM | Add IP stream |
NAMX_RECORD | CAN_DELETE_STREAM | Delete IP stream |
NAMX_RECORD | CAN_MODIFY_STREAM | Modify IP stream |
FTP | ||
PARAM_FTP | DISPLAY | See FTP parameters button |
EXPORT | ||
PARAM_PROFILE | DISPLAY | See new profile button |
PARAM_PROFILE | ENABLE_DRAG_AND_DROP_FROM_BROWSER | Can export with drag and drop from Browser to desktop |
FEDER-ALL | ||
FEDERALL | ADMIN_RIGHTS | Admin rights: create/copy/modify playlist |
FEDERALL | CAN_IMPORT | Can import on playlist |
FEDERALL | CAN_MODIFY_PROGRAM | Can modify program |
FEDERALL | CAN_DELETE_PROGRAM | Can delete program |
FEDERALL | CAN_PRINT | Print a playlist |
FEDERALL | CANNOT_SEE_PLAYING_ITEM | Not follow On Air When Air DDO is playing a sound, a multicast IP message is sent. Federall stations receiving this message will dsiplay the play information if the right playlist is loaded. |
FEDERALL | CAN_CREATE_EMPTY_RUN | Create empty run |
FEDERALL | CAN_USE_MULTIMIX | Use MultimixMix |
FEDERALL | CAN_MODIFY_RUN_1_1 | Modify run (Sound,News) |
FEDERALL | CAN_MODIFY_RUN_1_2 | Modify run (Sound,Music) |
FEDERALL | CAN_MODIFY_RUN_1_3 | Modify run (Sound,Jingle) |
FEDERALL | CAN_MODIFY_RUN_1_4 | Modify run (Sound,Advert) |
FEDERALL | CAN_MODIFY_RUN_1_5 | Modify run (Sound,Autoprog) |
FEDERALL | CAN_MODIFY_RUN_2_0 | Modify run (Sound,Default) |
FEDERALL | CAN_MODIFY_RUN_3_0 | Modify run (Picture,Default) |
FEDERALL | CAN_MODIFY_RUN_4_0 | Modify run (Video,Default) |
FEDERALL | CAN_MODIFY_RUN_5_0 | Modify run (Cart,Default) |
FEDERALL | CAN_MODIFY_RUN_6_0 | Modify run (JinglePack,Default) |
FEDERALL | CAN_DELETE_RUN_1_1 | Delete run (Sound,News) |
FEDERALL | CAN_DELETE_RUN_1_2 | Delete run (Sound,Music) |
FEDERALL | CAN_DELETE_RUN_1_3 | Delete run (Sound,Jingle) |
FEDERALL | CAN_DELETE_RUN_1_4 | Delete run (Sound,Advert) |
FEDERALL | CAN_DELETE_RUN_1_5 | Delete run (Sound,Autoprog) |
FEDERALL | CAN_DELETE_RUN_2_0 | Delete run (Text,Default) |
FEDERALL | CAN_DELETE_RUN_3_0 | Delete run (Picture,Default) |
FEDERALL | CAN_DELETE_RUN_4_0 | Delete run (Video,Default) |
FEDERALL | CAN_DELETE_RUN_5_0 | Delete run (Cart,Default) |
FEDERALL | CAN_DELETE_RUN_6_0 | Delete run (JinglePack,Default) |
FEDERALL | CAN_INSERT_RUN_1_1 | Insert run (Sound,News) |
FEDERALL | CAN_INSERT_RUN_1_2 | Insert run (Sound,Music) |
FEDERALL | CAN_INSERT_RUN_1_3 | Insert run (Sound,Jingle) |
FEDERALL | CAN_INSERT_RUN_1_4 | Insert run (Sound,Advert) |
FEDERALL | CAN_INSERT_RUN_1_5 | Insert run (Sound,Default) |
FEDERALL | CAN_INSERT_RUN_2_0 | Insert run (Text,Default) |
FEDERALL | CAN_INSERT_RUN_3_0 | Insert run (Picture,Default) |
FEDERALL | CAN_INSERT_RUN_4_0 | Insert run (Video,Default) |
FEDERALL | CAN_INSERT_RUN_5_0 | Insert run (Cart,Default) |
FEDERALL | CAN_INSERT_RUN_6_0 | Insert run (JinglePack,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_1_1 | No rigths on screen (Sound,News) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_1_2 | No rigths on screen (Sound,Music) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_1_3 | No rigths on screen (Sound,Jingle) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_1_4 | No rigths on screen (Sound,Advert) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_1_5 | No rigths on screen (Sound,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_2_0 | No rigths on screen (Text,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_3_0 | No rigths on screen (Picture,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_4_0 | No rigths on screen (Video,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_5_0 | No rigths on screen (Cart,Default) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_6_0 | No rigths on screen (JinglePack,Default) |
FEDERALL | CAN_CREATE_EMPTY_SCREEN | Create empty screen |
FEDERALL | CAN_MODIFY_RTBPLAYLIST | Modify a RTB playlist |
FEDERALL | CAN_INSERT_TEMPLATE | Can insert template |
FEDERALL | CAN_INSERT_SCREEN | Can insert screen |
FEDERALL | CAN_DELETE_SCREEN | Can delete screen |
FEDERALL | CAN_SPLIT_SCREEN | Can split screen |
FEDERALL | CAN_DELETE_SCREEN | Can delete screen |
FEDERALL | CAN_SEE_MUSIC_SCHEDULER | Can see Music Scheduler |
FEDERALL | CAN_MODIFY_RUN_$TAB_TYPE_$TAB_SUBTYPE | Modify Run from tab XXX (virtual tab created with Tab Editor) |
FEDERALL | CAN_DELETE_RUN_$TAB_TYPE_$TAB_SUBTYPE | Delete Run from tab XXX (virtual tab created with Tab Editor) |
FEDERALL | CAN_INSERT_RUN_$TAB_TYPE_$TAB_SUBTYPE | Insert Run from tab XXX (virtual tab created with Tab Editor) |
FEDERALL | CAN_NOT_MODIFY_SCREEN_$TAB_TYPE_$TAB_SUBTYPE | No rights on screen XXX (virtual tab created with Tab Editor) |
FEDERALL | CAN_INSERT_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Insert metadata on dynamlique screen XXXX |
FEDERALL | CAN_MODIFY_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Modify metadata on dynamlique screen XXXX |
FEDERALL | CAN_DELETE_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Delete metadata on dynamlique screen XXXX |
GRID-EDITOR | ||
GRID_EDITOR | ADMIN_RIGHTS | Admin rights: create/copy/modify grid and templates |
GRID_EDITOR | CAN_SEE_IMPORT_SETUP | Can see import setup |
GRID_EDITOR | CAN_PRINT | Print a playlist |
GRID_EDITOR | CAN_DELETE_PROGRAM | Can delete program |
GRID_EDITOR | CAN_MODIFY_PROGRAM | Can modify program |
GRID_EDITOR | CAN_CREATE_EMPTY_RUN | Create empty run |
GRID_EDITOR | CAN_CREATE_EMPTY_SCREEN | Create empty screen |
GRID_EDITOR | CAN_MODIFY_RUN_1_1 | Modify run (Sound,News) |
GRID_EDITOR | CAN_MODIFY_RUN_1_2 | Modify run (Sound,Music) |
GRID_EDITOR | CAN_MODIFY_RUN_1_3 | Modify run (Sound,Jingle) |
GRID_EDITOR | CAN_MODIFY_RUN_1_4 | Modify run (Sound,Advert) |
GRID_EDITOR | CAN_MODIFY_RUN_1_5 | Modify run (Sound,Autoprog) |
GRID_EDITOR | CAN_MODIFY_RUN_2_0 | Modify run (Sound,Default) |
GRID_EDITOR | CAN_MODIFY_RUN_3_0 | Modify run (Picture,Default) |
GRID_EDITOR | CAN_MODIFY_RUN_4_0 | Modify run (Video,Default) |
GRID_EDITOR | CAN_MODIFY_RUN_5_0 | Modify run (Cart,Default) |
GRID_EDITOR | CAN_MODIFY_RUN_6_0 | Modify run (JinglePack,Default) |
GRID_EDITOR | CAN_DELETE_RUN_1_1 | Delete run (Sound,News) |
GRID_EDITOR | CAN_DELETE_RUN_1_2 | Delete run (Sound,Music) |
GRID_EDITOR | CAN_DELETE_RUN_1_3 | Delete run (Sound,Jingle) |
GRID_EDITOR | CAN_DELETE_RUN_1_4 | Delete run (Sound,Advert) |
GRID_EDITOR | CAN_DELETE_RUN_1_5 | Delete run (Sound,Autoprog) |
GRID_EDITOR | CAN_DELETE_RUN_2_0 | Delete run (Text,Default) |
GRID_EDITOR | CAN_DELETE_RUN_3_0 | Delete run (Picture,Default) |
GRID_EDITOR | CAN_DELETE_RUN_4_0 | Delete run (Video,Default) |
GRID_EDITOR | CAN_DELETE_RUN_5_0 | Delete run (Cart,Default) |
GRID_EDITOR | CAN_DELETE_RUN_6_0 | Delete run (JinglePack,Default) |
GRID_EDITOR | CAN_INSERT_RUN_1_1 | Insert run (Sound,News) |
GRID_EDITOR | CAN_INSERT_RUN_1_2 | Insert run (Sound,Music) |
GRID_EDITOR | CAN_INSERT_RUN_1_3 | Insert run (Sound,Jingle) |
GRID_EDITOR | CAN_INSERT_RUN_1_4 | Insert run (Sound,Advert) |
GRID_EDITOR | CAN_INSERT_RUN_1_5 | Insert run (Sound,Default) |
GRID_EDITOR | CAN_INSERT_RUN_2_0 | Insert run (Text,Default) |
GRID_EDITOR | CAN_INSERT_RUN_3_0 | Insert run (Picture,Default) |
GRID_EDITOR | CAN_INSERT_RUN_4_0 | Insert run (Video,Default) |
GRID_EDITOR | CAN_INSERT_RUN_5_0 | Insert run (Cart,Default) |
GRID_EDITOR | CAN_INSERT_RUN_6_0 | Insert run (JinglePack,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_1_1 | No rigths on screen (Sound,News) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_1_2 | No rigths on screen (Sound,Music) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_1_3 | No rigths on screen (Sound,Jingle) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_1_4 | No rigths on screen (Sound,Advert) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_1_5 | No rigths on screen (Sound,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_2_0 | No rigths on screen (Text,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_3_0 | No rigths on screen (Picture,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_4_0 | No rigths on screen (Video,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_5_0 | No rigths on screen (Cart,Default) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_6_0 | No rigths on screen (JinglePack,Default) |
GRID_EDITOR | CAN_INSERT_TEMPLATE | Can insert template |
GRID_EDITOR | CAN_INSERT_SCREEN | Can insert screen |
GRID_EDITOR | CAN_MODIFY_SCREEN | Can modify screen |
GRID_EDITOR | CAN_DELETE_SCREEN | Can delete screen |
GRID_EDITOR | CAN_SEE_MUSIC_SCHEDULER | Can see Music Scheduler |
GRID_EDITOR | CAN_MODIFY_RUN_$TAB_TYPE_$TAB_SUBTYPE | Modify Run from tab XXX (virtual tab created with Tab Editor) |
GRID_EDITOR | CAN_DELETE_RUN_$TAB_TYPE_$TAB_SUBTYPE | Delete Run from tab XXX (virtual tab created with Tab Editor) |
GRID_EDITOR | CAN_INSERT_RUN_$TAB_TYPE_$TAB_SUBTYPE | Insert Run from tab XXX (virtual tab created with Tab Editor) |
GRID_EDITOR | CAN_NOT_MODIFY_SCREEN_$TAB_TYPE_$TAB_SUBTYPE | No rigths on screen XXX (virtual tab created with Tab Editor) |
GRID_EDITOR | CAN_INSERT_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Insert metadata on dynamlique screen XXXX |
GRID_EDITOR | CAN_DELETE_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Delete metadata on dynamlique screen XXXX |
GRID_EDITOR | CAN_MODIFY_METADATA_ITEM_$TAB_TYPE_$TAB_SUBTYPE | Modify metadata on dynamlique screen XXXX |
LOCALISATION | ||
LOCALISATION | LOCALISATION_TMPLSCHED_LEVEL | Template/Schedule Editing Privilege Level |
LOCALISATION | LOCALISATION_ADMIN_LEVEL | Administration Privilege Level |
RAPPORTS | ||
REPORTS | CAN_MODIFY_REPORTS | Modifier les rapports |
SETUP | ||
SETUP | CAN_ADD_IP_STREAM | Add IP stream |
ACTIVITY WATCHER | ||
ACTIVITY_WATCHER | CAN_SEE_ADMIN | Access to the administration |
MESSAGE | ||
INSTANT_MESSENGER | CAN_SEE_ADMIN | Access to the administration |
SAVE OPTIONS | ||
$COMPONENT_ID | REQUIRED | Required cell of virtual tabs |
$COMPONENT_ID | UPDATABLE | Modified cell of virtual tabs |
MEDIA ASSIST | ||
TOOLS DSIPLAY | ||
MA_EDITING | DISPLAY | Display tab Edit (Media Assist) |
MA_EXCHANGE | DISPLAY | Display tab Exchange (Media Assist) |
MA_IMPORT | DISPLAY | Display tab Record Monitoring (Media Assist) |
MA_METADATA | DISPLAY | Display tab Metadata (Media Assist) |
MA_MONITORING | DISPLAY | Display tab Setting (Media Assist) |
MA_REPORT | DISPLAY | Display tab Import (Media Assist) |
MA_SETTINGS | DISPLAY | Display tab Reports (Media Assist) |
MONITORING | ||
MA_MONITORING | CAN_SEE_EXCHANGE_MONITORING_QUEUE | Can see Exchange monitoring queue |
MA_MONITORING | CAN_SEE_DAS_MONITORING | Can see DAS Monitoring |
MA_MONITORING | CAN_MODIFY_EXCHANGE_PRIORITIES | Can modify Exchange priorities |
SETTINGS | ||
MA_SETTINGS | CAN_SEE_GENERAL_SETTINGS | Can see General settings |
MA_SETTINGS | CAN_SEE_ADMINISTRATOR_SETTINGS | Can see Administrator settings |
MA_SETTINGS | CAN_SEE_PROFILE_SETTINGS | Can see Profile settings |
MA_SETTINGS | CAN_SEE_EXPORT_SETTINGS | Can see Export settings |
MEDIA ASSIST API | ||
GLOBAL | ||
GLOBAL | CAN_USE_API | Can use API |
